产品详细
导线截面:0.5 - 1.5 mm? (美国线规 22 - 16 ) 最大电流:Imax = 19A | ||||||||

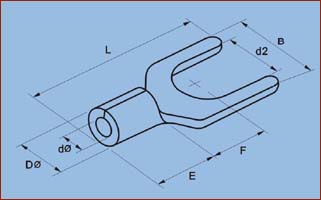

型号 | 尺 寸 | |||||||
美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | |
d2 | mm | mm | mm | mm | mm | mm | ||
SNB1.25 - 3 | #4 | 3.2mm | 5.7 | 16.0 | 6.5 | 4.8 | 3.4 | 1.7 |
SNBS1.25 - 3.5 | #6 | 3.7mm | 5.7 | 16.0 | 6.5 | |||
SNBL1.25 - 3.5 | #6 | 3.7mm | 6.4 | 16.0 | 6.5 | |||
SNBS1.25 - 4 | #8 | 4.3mm | 6.4 | 16.0 | 6.5 | |||
SNBM1.25 - 4 | #8 | 4.3mm | 7.2 | 16.0 | 6.5 | |||
SNBL1.25 - 4 | #8 | 4.3mm | 8.1 | 16.0 | 6.5 | |||
SNBS1.25 - 5 | #10 | 5.3mm | 8.1 | 16.0 | 6.5 | |||
SNBL1.25 - 5 | #10 | 5.3mm | 9.5 | 16.0 | 6.5 | |||
SNBS1.25 - 6 | 1/4 | 6.5mm | 9.5 | 16.0 | 6.5 | |||
SNBL1.25 - 6 | 1/4 | 6.5mm | 12.0 | 22.0 | 11.0 | |||
导线截面:1.5 - 2.5 mm? (美国线规 16 - 14) 最大电流:Imax = 27A | ||||||||
型号 | 尺 寸 | |||||||
美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | |
d2 | mm | mm | mm | mm | mm | mm | ||
SNB2 - 3 | #4 | 3.2mm | 5.7 | 16.0 | 6.5 | 4.8 | 4.1 | 2.3 |
SNBS2 - 3.5 | #6 | 3.7mm | 5.7 | 16.0 | 6.5 | |||
SNBL2 - 3.5 | #6 | 3.7mm | 6.0 | 16.0 | 6.5 | |||
SNBS2 - 4 | #8 | 4.3mm | 6.4 | 16.0 | 6.5 | |||
SNBM2 - 4 | #8 | 4.3mm | 7.2 | 16.0 | 6.5 | |||
SNBL2 - 4 | #8 | 4.3mm | 8.1 | 16.0 | 6.5 | |||
SNBS2 - 5 | #10 | 5.3mm | 8.1 | 16.0 | 6.5 | |||
SNBL2 - 5 | #10 | 5.3mm | 9.5 | 16.0 | 6.5 | |||
SNBS2 - 6 | 1/4 | 6.5mm | 9.5 | 16.0 | 6.5 | |||
SNBL2 - 6 | 1/4 | 6.5mm | 12.0 | 22.0 | 11.0 | |||
导线截面:2.5 - 4 mm? (美国线规 14 - 12) 最大电流:Imax = 37A | ||||||||
型号 | 尺 寸 | |||||||
美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | |
d2 | mm | mm | mm | mm | mm | mm | ||
SNB3.5 - 4 | #8 | 4.3mm | 8.0 | 18.3 | 7.0 | 6.0 | 5.0 | 3.0 |
SNB3.5 - 5 | #10 | 5.3mm | 8.0 | 18.3 | 7.0 | |||
SNB3.5 - 6 | 1/4 | 6.5mm | 12.0 | 21.5 | 12.1 | |||
导线截面:4 - 6 mm? (美国线规 12 - 10) 最大电流:Imax = 48A | ||||||||
型号 | 尺 寸 | |||||||
美制螺栓号 | 螺栓口直径 | B | L | F | E | DΦ | dΦ | |
d2 | mm | mm | mm | mm | mm | mm | ||
SNB5.5 - 3.5 | #6 | 3.7mm | 8.3 | 19.5 | 7.5 | 6.8 | 5.6 | 3.4 |
SNB5.5 - 4 | #8 | 4.3mm | 8.3 | 19.5 | 7.5 | |||
SNB5.5 - 4 | #8 | 4.3mm | 9.0 | 19.5 | 7.5 | |||
SNB5.5 - 5 | #10 | 5.3mm | 9.0 | 19.5 | 7.5 | |||
SNB5.5 - 6 | 1/4 | 6.5mm | 9.0 | 19.5 | 7.5 | |||
SNB5.5 - 6 | 1/4 | 6.5mm | 12.0 | 25.5 | 12.0 | |||
SNB5.5 - 8 | 5/16 | 8.4mm | 14.0 | 24.5 | 11.5 | |||
