产品详细
| 图号 | 品名编号 | 板厚 | 尺寸Dimension(mm) | 适用电线 | 数量 | 备注 | |||
| T | Wire Range | Q'TY | |||||||
| M | W | E | L | (AWG#) | (Reel) | ||||

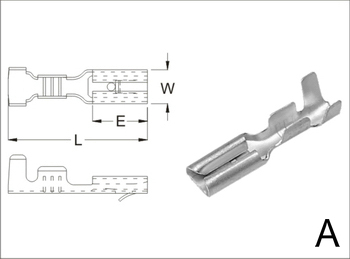

| A | B110311 | 0.25 | 3.8 | 6.3 | 15.6 | 18~20 | 15000 | TAB=0.5 | |

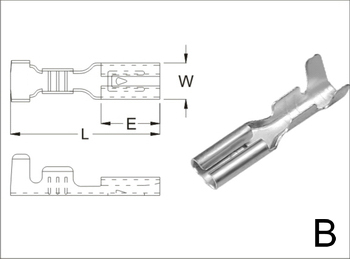

| B | B110312 | 0.25 | 3.8 | 6.3 | 15.6 | 24~26 | 15000 | TAB=0.5 | |
| B | B110313 | 0.25 | 3.8 | 6.3 | 15.6 | 18~20 | 15000 | TAB=0.4 | |
| B | B110314 | 0.25 | 3.8 | 6.3 | 15.6 | 18~20 | 15000 | TAB=0.5 UL CQC | |
| B | B110315 | 0.25 | 3.8 | 6.3 | 15.6 | 14~16 | 10000 | TAB=0.5 UL | |
| B | B110316 | 0.25 | 3.8 | 6.3 | 15.6 | 18~20 | 15000 | TAB=0.8 CQC | |
| B | B110317 | 0.25 | 3.8 | 6.3 | 15.6 | 14~16 | 10000 | TAB=0.8 | |
